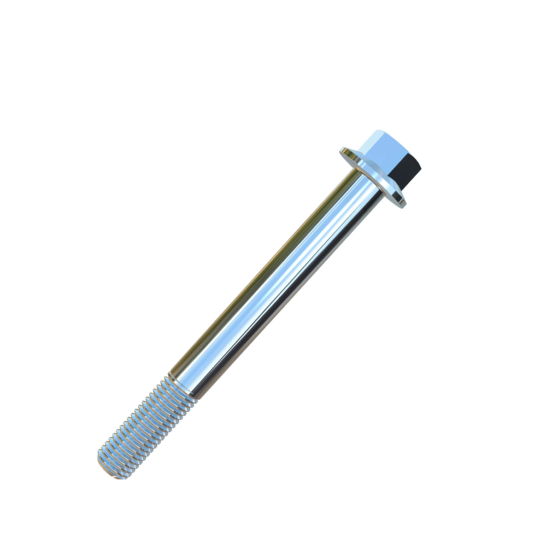

    Item # 0014131: 3/4-10 X 7 UNC Allied Titanium Hex Head Flange Bolt with Reduced Head, Grade 5 (Ti-6Al-4V) Titanium with Polished Finish
Titanium 3/4-10 X 7 UNC Allied Titanium Hex Head Flange Bolt with Reduced Head
  These bolts are TRUE TITANIUM(TM), specifically Grade 5 (Ti-6Al-4V). Grade 5 titanium is a common aerospace alloy that has been used in commercial aircraft for decades. The bolts have a dimple in the top of the head that designates high strength and a flange under the head for distributing the bolting force. The heads are also reduced in diameter from what they would be normally be for a given shank diameter. This reduction in size is done for applications where there are head clearance issues, or to reduce weight even further beyond the weight savings that titanium offers. With a minimum yield strength of 128,000 psi (880 Mpa), they are designed for structural applications in engines, race cars, powerboats, machinery, etc. If you are looking for high strength, or lightweight, or zero rust and want a reduced flange head, these bolts will work perfectly.

TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
Price: Call (302) 249-3295
Unit: Each
Min. Order Qty: 50
1st Qty Break: 500
1st Break Price: Call (302) 249-3295
2nd Qty Break: 1250
2nd Break Price: Call (302) 249-3295
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.2604
Measure: Inches
Diameter: 0.75
Pitch: 10
Length: 7
Group: Fasteners
Category: Fastener, Bolt
Sub Category: Hex Flange Bolt with Reduced Head
Class: Dimpled
Tolerance: +0/-0.024 inch
UPD # Ti5FBHFRID0.75-10X7P
Index: Bolt, Hex Head Flange with Reduced Head, Grade 5 Titanium
