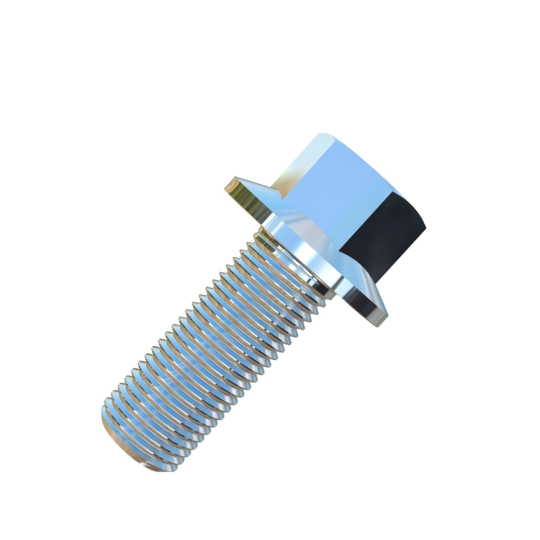

    Item # 0014287: 1/2-20 X 1-1/4 UNF Allied Titanium Hex Head Flange Bolt (No Dimple) with Reduced Head, Grade 5 (Ti-6Al-4V) Titanium with Polished Finish
Titanium 1/2-20 X 1-1/4 UNF Allied Titanium Hex Head Flange Bolt (No Dimple) with Reduced Head
  These bolts are TRUE TITANIUM(TM), specifically Grade 5 (Ti-6Al-4V). Grade 5 titanium is a common aerospace alloy that has been used in commercial aircraft for decades. The bolts have a flange under the head, but not a dimple that designates them as being high strength, even though they are. If you hold one of these Grade 5 titanium bolts and a Grade 2 titanium bolt in your hands, you won't be able to tell the difference in strength between them. This is why these bolts are normally manufactured with a dimple in the top. With a minimum yield strength of 128,000 psi (880 Mpa), they are designed for structural applications in race cars, sailboats, powerboats, engines, bicycles, etc. If you are looking for high strength, or lightweight, or zero rust, and you want a flat topped head, these bolts will work perfectly.

TRUE TITANIUM(TM) is a trademark to establish that this product is manufactured from solid Titanium, rather than a coating, plating or color. TRUE TITANIUM, Tough-Ti, the AT Logo, the Ring around our high strength screws, LOOK FOR THE RING, AFFORDABLE TITANIUM NOW and ALLIED TITANIUM are all trademarks of Allied Titanium, Inc.
Price: $19.47
Unit: Each
Min. Order Qty: 100
1st Qty Break: 1000
1st Break Price: 16.93
2nd Qty Break: 2500
2nd Break Price: 14.39
  Please call (800) 725-8143 or (302) 249-3295 if you need help.
Ship Kg: 0.0258
Measure: Inches
Diameter: 0.5
Pitch: 20
Length: 1.25
Group: Fasteners
Category: Fastener, Bolt
Sub Category: Hex Flange Bolt with Reduced Head
Tolerance: +0/-0.014 inch
UPD # Ti5FBHFRI0.5-20X1.25P
Index: Bolt, Hex Head Flange, Grade 5 Titanium (No Dimple)
